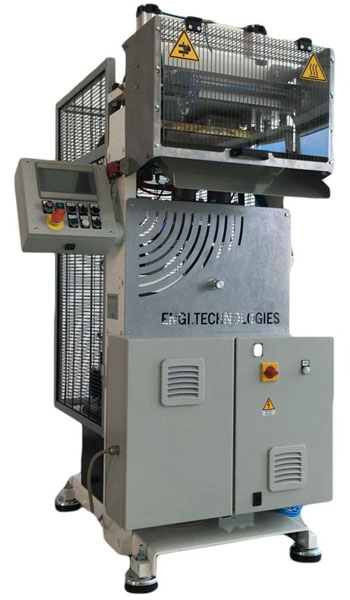

TECHNICAL FEATURES

  • Installed power 12 Kw
  • VOLUMETRIC feeding system
  • Dimensions 680 x 1200 x h.1950
  • Compressed air 6 bar – consumption 120 Nl/min
  • Weight 670 Kg
  • 380 Volt – 50 Hz 3Ph + N + T power supply
  • Hydro-mechanical pressing system with control unit on the machine
  • Steel structure coated with epoxy powder (*)
  • The machine conforms to CE European directive for machines
  • OPTIONAL * Nickel-plated steel structure on the surface and stainless steel electrical panel

THE PRESS IS EQUIPED WITH THE FOLLOWING PART:

  • Weintek type operator panel with 7″ TFT-LCD display for monitoring and entering data
  • PLC SIEMENS mod. S7 – 1200 (Machine Programmable Logic Controller)
  • Connection for remote technical support provided directly at the machine, through the Internet
  • Diagnostic control available remotely through the Internet

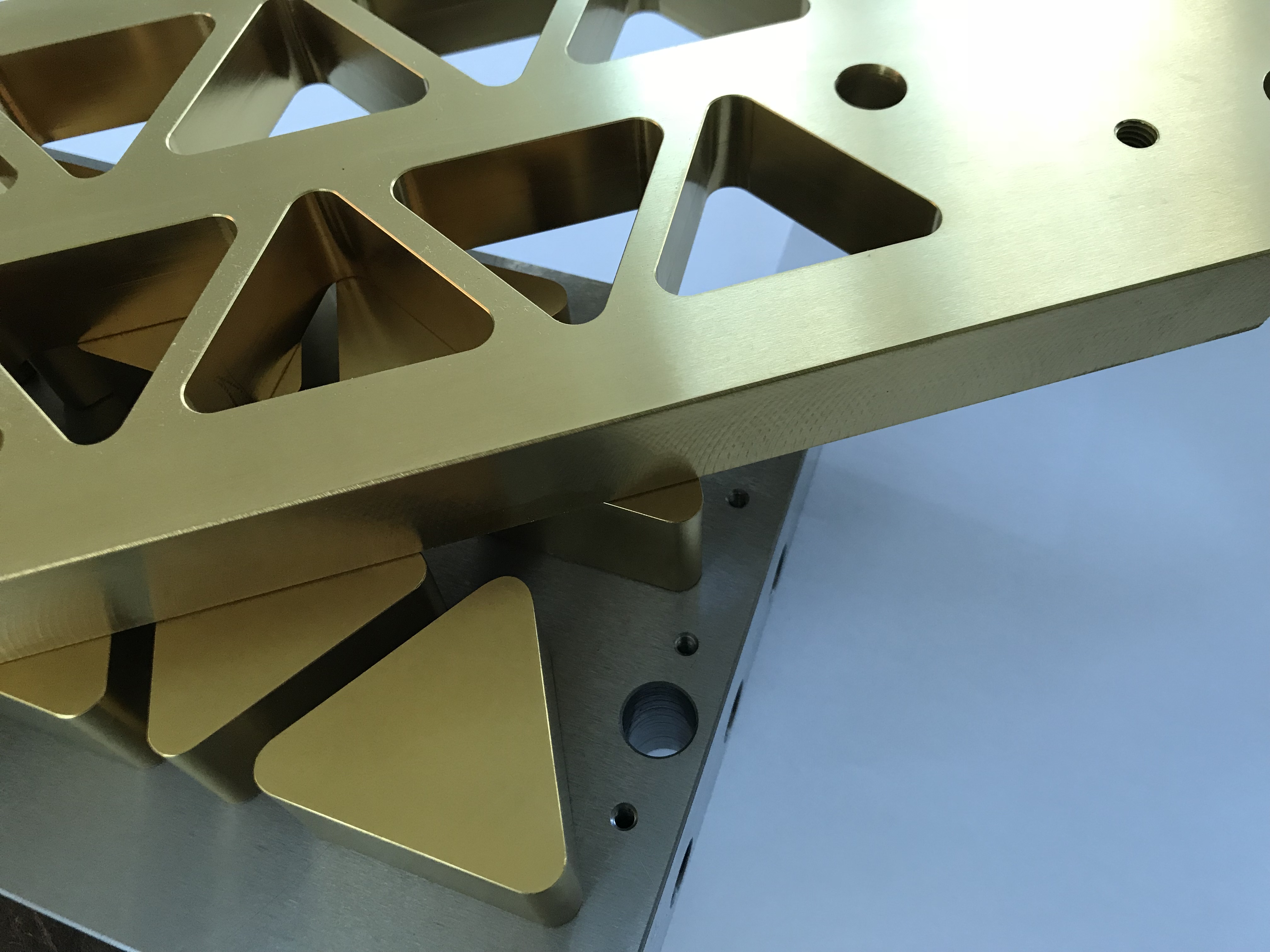

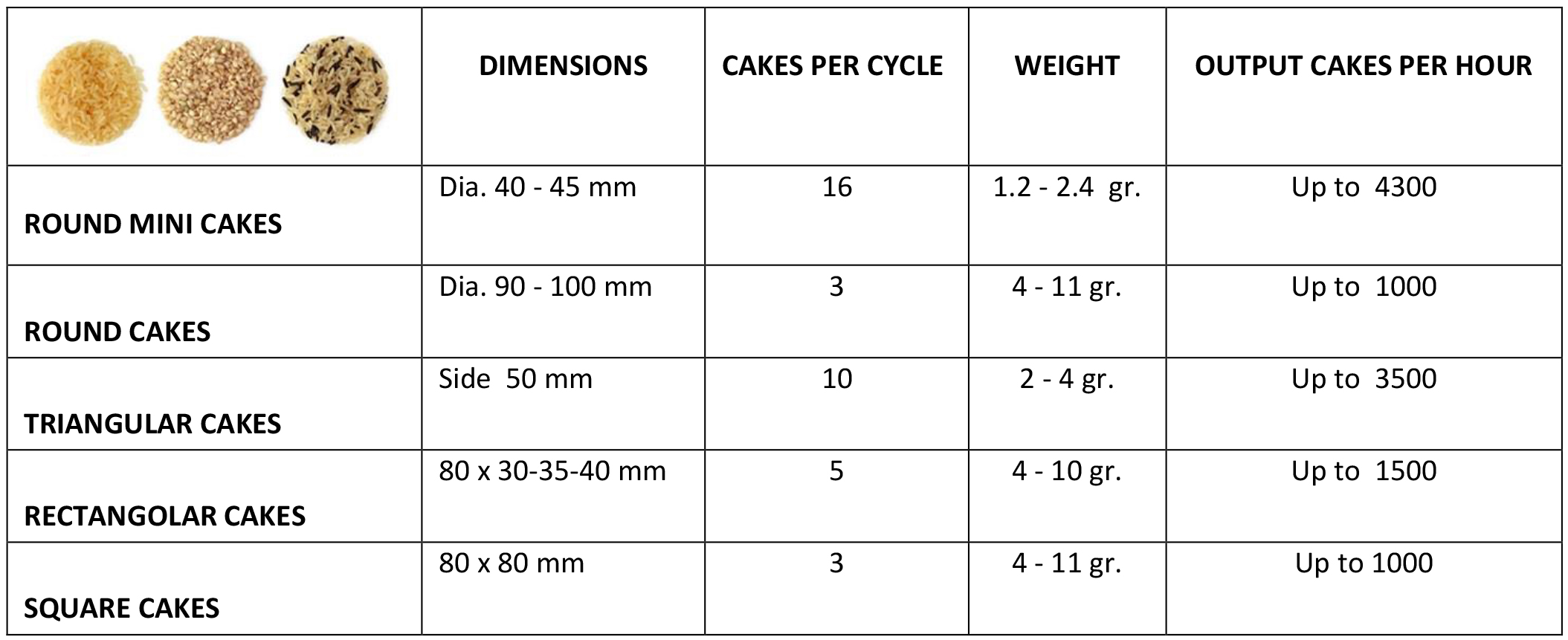

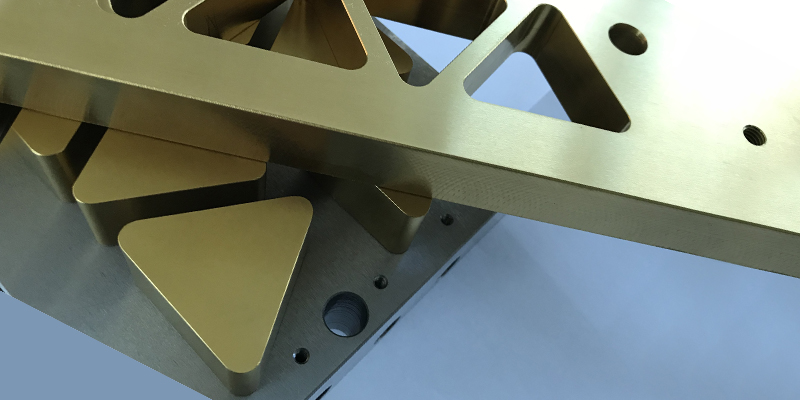

MOULDS CONFIGURATION
